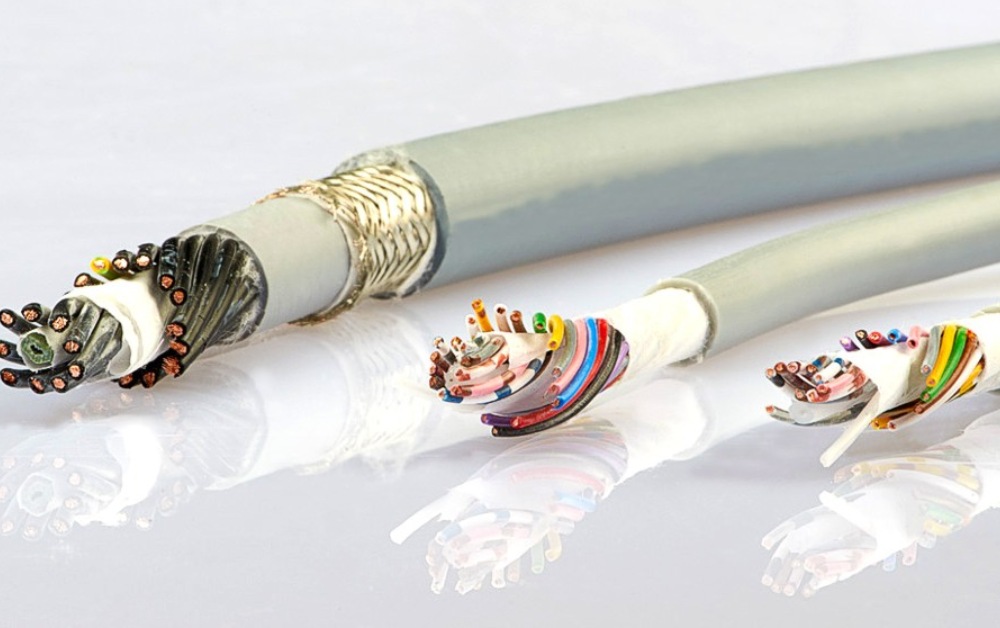

Control cables are an integral part of electrical systems that carry signals and control operations on various industrial and commercial processes. In the UAE, with its extreme weather patterns, high humidity, and constant industrial usage, these cables experience special challenges that can affect performance and safety. Whether in oil and gas plants, automation factories, or commercial structures, knowledge of the typical problems with control cables in UAE and how to resolve them is crucial to maintaining operational effectiveness and system lifespan.
Here, we will point out the most frequent issues with control cables in the UAE and provide simple troubleshooting advice on how to deal with each. This paper will prove particularly handy for engineers, electricians, and facilities maintenance staff operating in harsh environments.

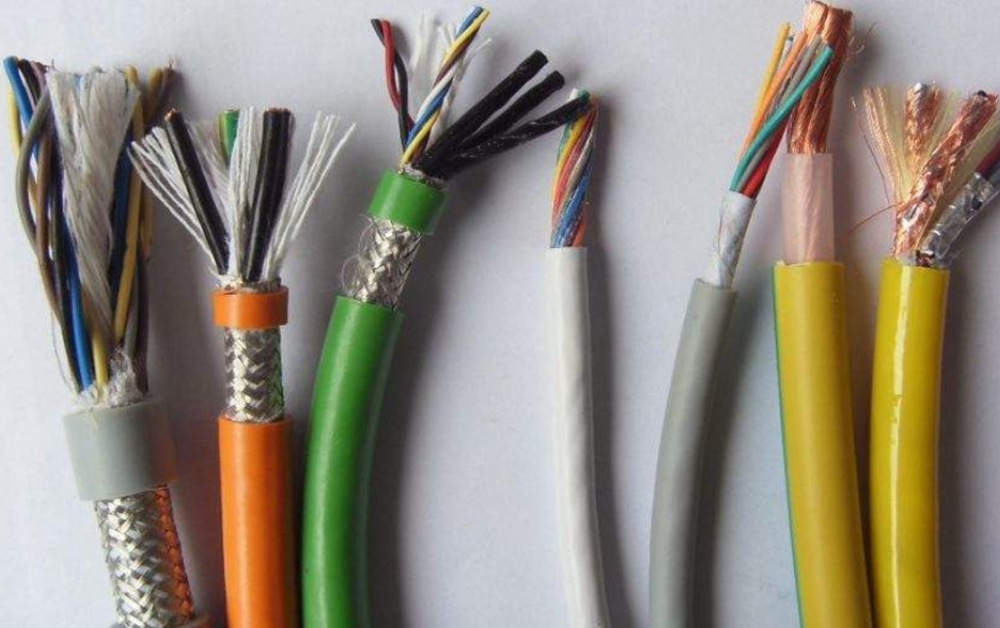

1.Heat Damage Caused by High Ambient Temperature
Problem:
The UAE has very high temperatures, particularly in the summer, with ambient temperatures reaching more than 50°C. This can result in premature degradation of the insulation and sheathing materials of control cables, leading to cracking, hardening, or melting.
Troubleshooting Tip:
Monitor control cables periodically for discoloration, brittleness, or cracking. Utilize infrared thermography to identify overheating within live systems. Prevent future damage by selecting control cables rated for high temperatures and installing them in shaded, ventilated, or thermally insulated raceways.
2.Moisture Ingress and Condensation
Problem:
Even in the dry climate, indoor and coastal areas tend to have humidity and moisture penetration. Moisture entry may lead to short circuits, failed insulation, and conductor corrosion.
Troubleshooting Tip:
Apply a megohmmeter to test insulation resistance. Where resistance is less than anticipated, moisture can be the cause. Replace damaged cables at once. To avoid the entry of moisture, employ double-sheathed cables or water-blocking tape. Secure all cable entries and terminations with IP-rated connectors and glands.
3.UV Radiation and Sunlight Exposure
Problem:
Direct sunlight may weather the outer sheath of UV-unprotected control cables. This is especially dangerous for outside installation over rooftops or exposed cable trays.
Troubleshooting Tip:
Check for discoloration, cracking, or powdery coating on cable sheaths. Replace damaged cables with UV-resistant types. Protect the cables from sunlight using conduit piping or cable trunking in exposed areas.
4.Mechanical Damage due to Wrong Installation
Problem:
Control cables may be cut, abraded, or crushed by improper bend radii, overtightened clamps, or rough handling during installation.
Troubleshooting Tip:
Inspect cable runs visually for kinks, dents, or sheathing damage. Prevent cables from being bent more than the recommended minimum radius. Reinstall cable trays or flexible conduits and prevent sharp bends or excessive tension.
5.Interference and Signal Degradation
Problem:
Signal integrity is critical in control systems. Electromagnetic interference from nearby motors, power cables, or radio equipment can cause interference in signal transmission within control cables, resulting in erratic functioning of attached devices.
Troubleshooting Tip:
Detect interference using an oscilloscope or signal analyzer. If EMI is detected, redirect control cables from power lines or use shielded control cables with correct grounding. According to electrical code, twisted pair cables are used for analog signals, and separation between high and low-voltage circuits is maintained.
6.Chemical Exposure in Industrial Environments
Problem:
In UAE’s refineries, desalination units, and chemical plants, control cables can be exposed to oils, solvents, or corrosive substances that degrade cable insulation.
Troubleshooting Tip:
Check cables in chemical-susceptible areas for swelling, softening, or discoloration. Replace it with chemical-resistant control cables (e.g., PVC or XLPE jackets suitable for such areas) if affected. Fit protective covers or steer cables away from spill areas.
7.Rodent Damage
Problem:
Rodents and insects can bite through control cables, especially in warehouses or outside environments. This may cause short circuits or open circuits.
Troubleshooting Tip:
Check for chewing marks, lack of insulation, or abnormal circuit performance. Employ rodent-resistance cables or use anti-rodent cable coatings. Sealing cable entries and trapping rodents can also help prevent this.
8.Poor Terminations and Loose Connectors
Problem:
Incorrect terminations or loose screw fitments at junction boxes and panels may result in intermittent faults, voltage drops, or even arcing.
Troubleshooting Tip:
Tighten terminal connections from time to time. Ensure proper cable lugs and terminals are used for a good joint. Thermal cameras may also be used to spot hotspots due to poor contact. Always adhere to manufacturer instructions while installing.
9.Overloading or Misuse
Problem:
Overusing control cables at a rated voltage or current capacity may lead to overheating and insulation breakdown.
Troubleshooting Tip:
Verify the current load with clamp meters and against cable specifications. If overload is sensed, change to a higher-rated cable or reduce the load. Always consult local standards and guidelines when calculating control cables.
10.Aging and Wear Over Time
Problem:
The best cables all have a limited lifespan. Aging control cables might exhibit symptoms such as regular signal loss, low insulation resistance, or physical degradation.
Troubleshooting Tip:
Conduct routine insulation resistance testing and visual checks. Replace cables that are exhibiting signs of aging even if they are functional, particularly in applications where they are critical. Maintain a maintenance record to monitor cable life and schedule timely replacements.
Conclusion
Control cables are critical to the efficient and safe running of electrical systems across different industries in the UAE. The environmental issues of the region, ranging from high temperatures and UV radiation to factory-related hazards, may cause cable problems repeatedly if not tackled upfront. With knowledge of typical issues and the utilization of proper troubleshooting methods, maintenance technicians and engineers can increase the reliability and lifespan of their control cable systems.
Preventative steps like selecting the appropriate type of cable, regular inspections, and compliance with installation best practices are the building blocks to preventing expensive failures. For long-term success, it’s equally essential to source reliable control cable suppliers in the UAE who provide quality products specifically manufactured for the demanding conditions of the region.
