Ex Proof Portable Working Light

Features

  • Zone Suitability: Suitable for Zone 1 & 2, Zone 21 & 22.

  • Adjustability: Lighting angle adjustable up to 120 degrees. The lamp head can be adjusted with 360° rotation for omni-directional lighting.

  • Mobility: The bottom of the light box is equipped with wheels for easy movement.

  • Lifting Mechanism: Uses an air pump or manual valve to control the lifting lever, saving energy.

  • Generator Features: The bottom of the generator set is equipped with shock-absorbing universal wheels, which can run on pavement and railway tracks in pits.

  • Portability: Small size, light weight, and easy to carry.

Models & Specifications

Ex Proof Portable Working Light Specifications
Ex Proof Portable Working Light

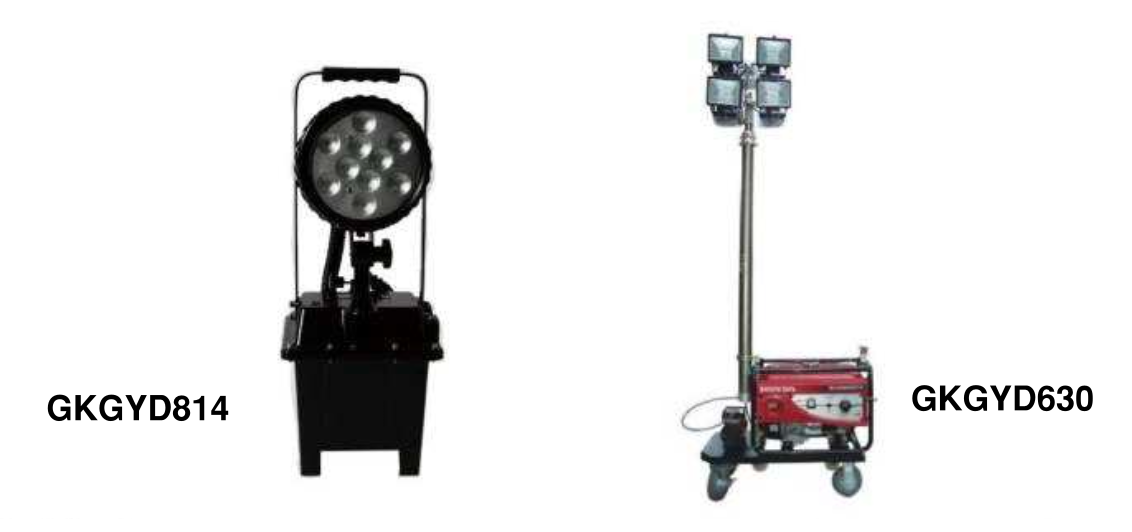

Specification GKGYD814 GKGYD630
Power 10 * 3W 4 * 500W
Ex Mark Ex db IIC T6 / Ex tb IIIC T80°C Db —
Light Source LED HID
Battery / Generator 20000 mAh 2000W / 15L with alternators
Emergency Time 16 hours —
Work Time 30 hours 13 hours
Certified CNEx, ATEX, IP67 —
Mode Portable —
