Explosion proof Audible and Visual Alarms (GKGYJ Series)
Features
Aluminium alloy die-casting shell
Toughened glass lampshade with strong impact resistance
Internal lampshade with red, yellow, blue, and other colors available
Configuration of LED light source with high brightness and long working life
Suitable for explosive gas environments of Zone 1 and Zone 2 places
Suitable for combustible dust environments of Zone 21 and Zone 22 places
Suitable for IIA, IIB, IIC explosive gas environments
Explosion-proof Audible and Visual Alarms

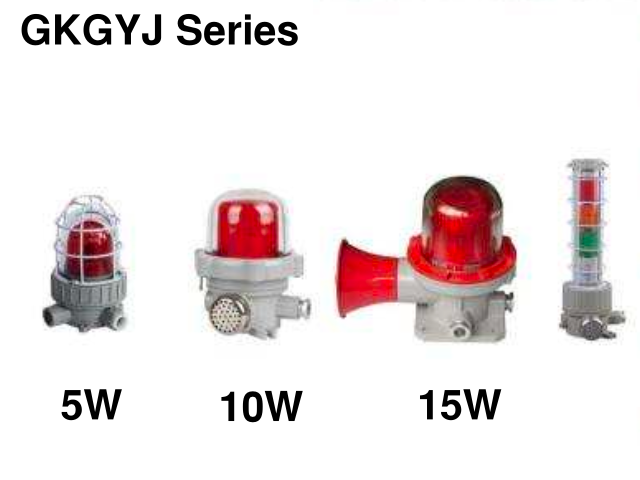

GKGYJ Series Specifications
| Power Options | 5W, 10W, 15W (Range: 5–40W) |
|---|---|
| Ex Marking | Ex eb db IIC T4 Gb / Ex tb IIIC T130°C Db |
| Operating Voltage | 220VAC 50Hz, 24VDC |
| IP Rating | IP66 |
| Sound Level | 120–180 dB |
| Flashing Frequency | 150 Times/min |
| Available Colors | Red, Yellow, Blue, Green |
| Certifications | Ex ATEX |
| Mounting Type | Ceiling |
