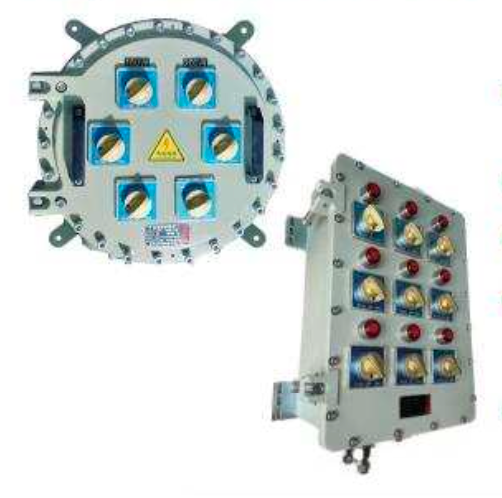

Explosion Proof Control Panel

Features

  • The shell is made of aluminium alloy die-casting, with high strength and corrosion resistance.

  • This series of products is of explosion-proof “Ex d” structure.

  • Modular design, various circuits can be freely combined.

  • It can be used for power distribution of power circuit or starting of electrical equipment, and also mixed with power distribution and electromagnetic starting.

  • Can be specially manufactured according to user requirements.



Technical Specifications

  • Material: Aluminum Alloy





  • Ex Mark: Ex db eb IIC T6 Gb / Ex tb IIIC T80°C Db

  • Protection: IP66, WF2

  • Rated Current: $\le$ 225A

  • Rated Voltage: AC110/220/380/460V

  • Cable Entry: Customized

  • Mounting: Wall

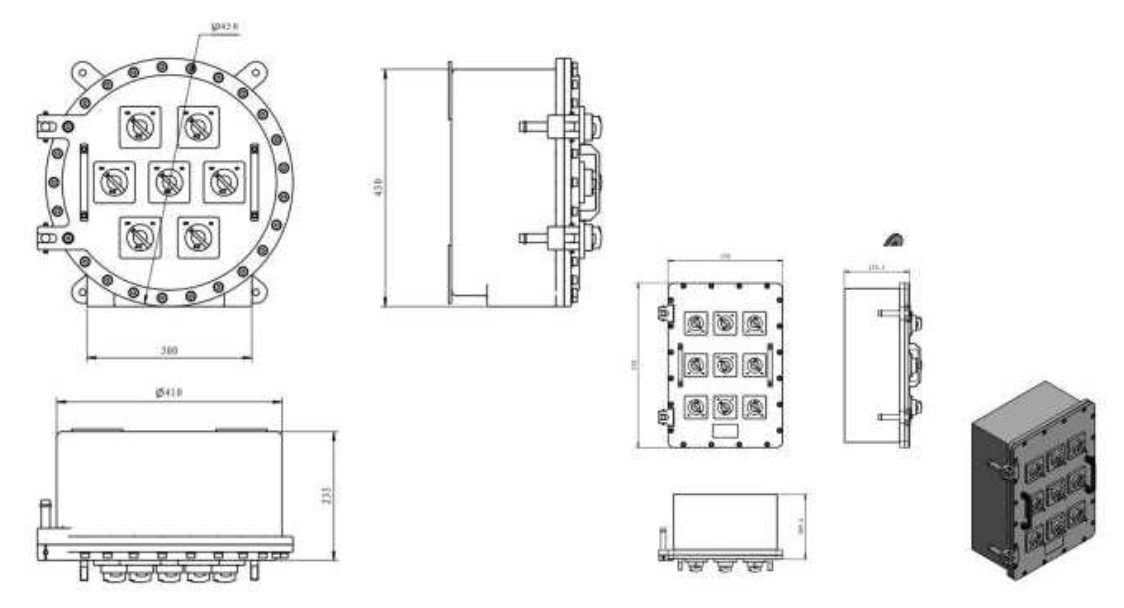

Dimensions(mm)
