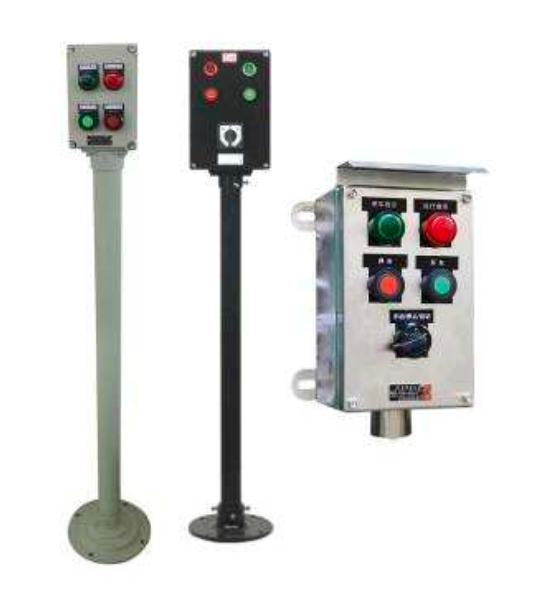

Explosion Proof Control Station

Features

  • A variety of shell materials are available, including:

    • High strength aluminium alloy with electrostatic spraying after highly shot blasting and cleaning.

    • Glass fibre reinforced polyester resin.

    • Stainless steel.

  • Shell structure is compact and reasonable, good strength, excellent explosion-proof performance, good anti-corrosion performance, neat appearance, beautiful and generous.

  • Inside can be equipped with indicators, ammeter, voltmeter, buttons, transfer switch and other components required by the user (potentiometer, frequency meter, tachometer, etc.).

  • Functional options tailored to the user, easy to operate, strong applicability.

Technical Specifications

  • Material: Cast aluminium, Stainless Steel, GRP

  • Ex Mark: Ex db eb IIC T6 Gb, Ex tb IIIC T80°C Db

  • Protection: IP65/WF1/WF2

  • Rated Current: 10A

  • Rated Voltage: 220/380V

  • Cable Entry: G1/2″, G3/4″, G1″, etc.

  • Mounting: Hanging, Vertical

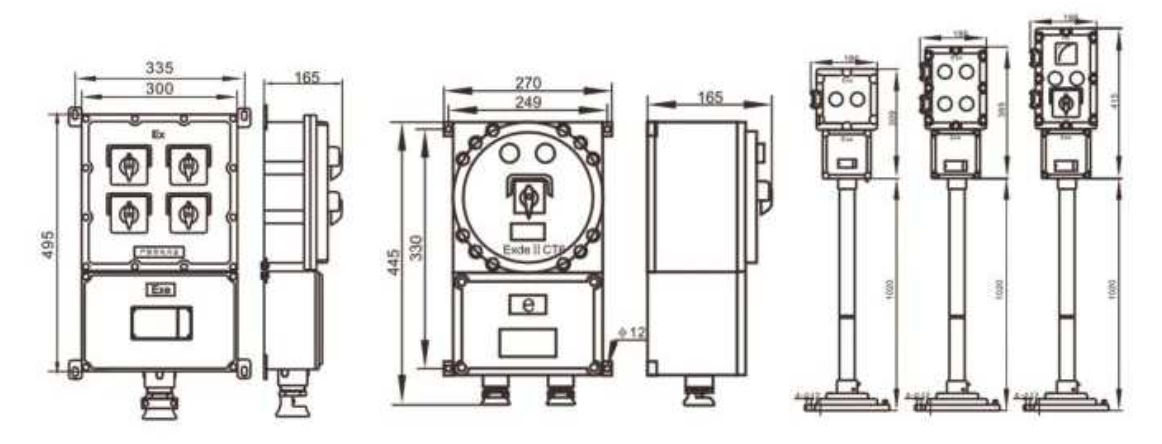

Dimensions(mm)
