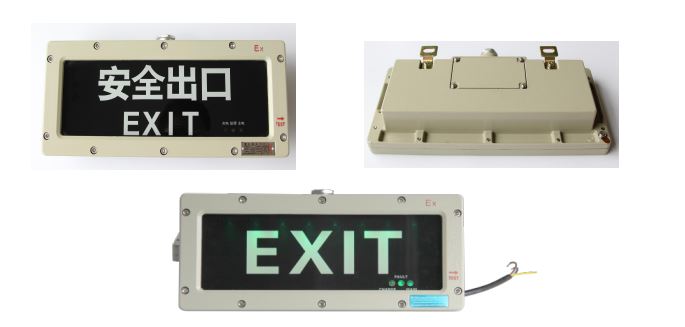

Explosion Proof EXIT Light 3W, LED

Application

  • Explosive hazardous atmosphere Zone 1, 2 & Zone 21, 22

  • Widely used for safety exit indication and marking on various marine platforms, chemical tankers, LNG ships, and dangerous cargo wharfs, etc.

  • Can reliably work in severe environment where is easily affected by moisture, vibration, or corrosion.

Standard Materials

  • Housing: Die-casting aluminum

  • Exterior: Stainless steel

  • Globe: Tempered glass

  • Gasket: Silicone rubber

Certifications

  • ATEX

  • CNEX

  • CE

  • RoHS

  • ISO9001

Ex Marking & Electrical Info

  • II 2G Ex db eb IIC T6 Gb

  • II 2D Ex tb IIIC T80°C Db IP66

  • Application: Zone 1, 2 & 21, 22

  • Voltage: 100-277VAC, 50-60 Hz

  • Emergency time: $\ge 180\text{min}$

  • Charging time: $\le 24\text{h}$

  • Light source: LED

Features

  • Die-cast aluminium body with baked epoxy powder coat finish for durability and corrosion resistance

  • Toughened glass transparent cover with high light transmittance

  • Ultra-bright LED light source, service life is up to 50,000 hours

  • Designed with test buttons, convenient for regularly maintenance

  • The light fitting is designed with a main power indicator, failure and charging indicator, to show using status

  • Designed with test button

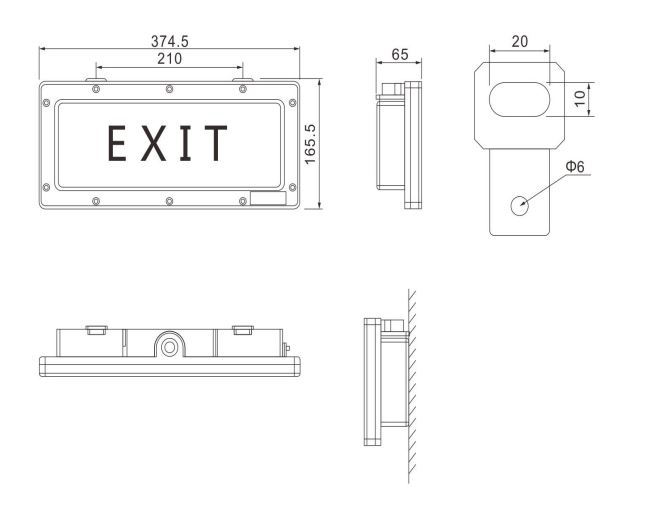

Dimension(in mm)

Electrical Data

Electrical Data
Ex Marking Ex db eb IIC T6 Gb/ Ex tb IIIC T80°C Db IP66
Classification Zone 1, 2 & Zone 21, 22
IP Degree IP66
Corrosion Resistant WF1
Input Voltage AC220-240V 50Hz
Wattage 3W
Entries G4/3"
Red Lettering Optiional
Back-up Battery >180min
Mounting Styles Pendant; Ceiling; Wall
Weight 3.5kg

Sign Code
