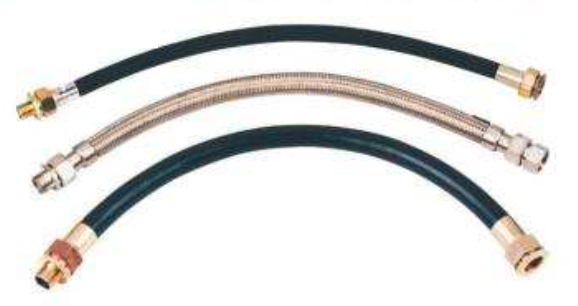

Explosion Proof Flexible Conduit

Key Features

  • Durability & Resistance: Oil resistance, acid resistance, corrosion resistance, abrasion resistance, aging resistance, waterproof, flame retardant, and good flexibility.

  • Rubber Flexible Pipe: Made of high-quality carbon steel internal and external threaded fittings, metal hose, outsourcing PVC pipe, and other components.

  • Stainless Steel Flexible Pipe: Made of high-quality stainless steel internal and external threaded fittings, stainless steel bellows outside the stainless steel mesh pipe, and other components.

Technical Specifications

  • Material: Rubber, Stainless steel

  • Ex Mark: Ex db IIC Gb

  • Protection Rating: IP65, WF1

  • Thread Sizes: G1/2″, G3/4″, G1″, G1.1/4″, G1.1/2″, G2

GKBNG Explosionproof Flexible Conduit Specifications
Model / Spec Size Nominal Dia. (DN) Thread Size Length (mm) Bending Radius (mm)
DN15 × 700 15 G1/2" 700 80
DN15 × 1000 15 G1/2" 1000 80
DN20 × 700 20 G3/4" 700 110
DN20 × 1000 20 G3/4" 1000 110
DN25 × 700 25 G1" 700 145
DN25 × 1000 25 G1" 1000 145
DN32 × 700 32 G1.1/4" 700 180
DN32 × 1000 32 G1.1/4" 1000 180
DN40 × 700 40 G1.1/2" 700 210
DN40 × 1000 40 G1.1/2" 1000 210
DN50 × 700 50 G2" 700 250
DN50 × 1000 50 G2" 1000 250
DN70 × 700 70 G2.1/2" 700 350
DN70 × 1000 70 G2.1/2" 1000 350
DN80 × 700 80 G3" 700 400
DN80 × 1000 80 G3" 1000 400
DN100 × 700 100 G4" 700 500
DN100 × 1000 100 G4" 1000 500
DN100 × 1400 100 G4" 1400 500

Case Share - Sherwin Williams

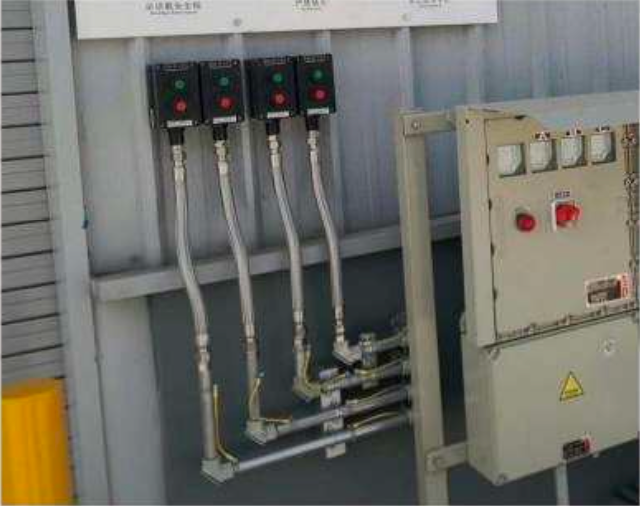

Explosion Proof Control Station

  • Explosive Hazardous Places: Zone 1, Zone 2; Zone 21, Zone 22

  • Flammable Gas / Vapor Level: IIA, IIB

  • Temperature Group: T1–T4

  • Environment: Indoor and outdoor (IP66)

  • Application: Suitable for lighting and power lines; includes breaking, overload, loss of voltage protection, and short-circuit automatic cut-off functions. Compatible with steel pipe or cable wiring.

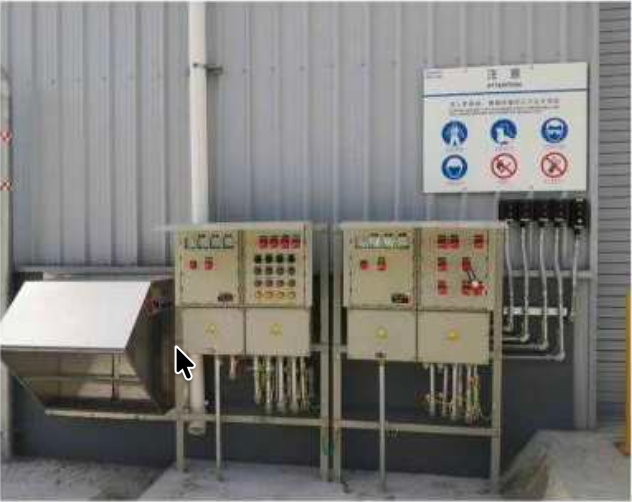

Explosion-proof Lighting Power Control Box

  • Explosive Hazardous Places: Zone 1, Zone 2; Zone 21, Zone 22

  • Flammable Gas / Vapor Level: IIA, IIB

  • Temperature Group: T1–T4

  • Environment: Indoor and outdoor (IP66)

  • Application: Suitable for lighting and power lines; includes breaking, overload, loss of voltage protection, and short-circuit automatic cut-off functions. Compatible with steel pipe or cable wiring.
