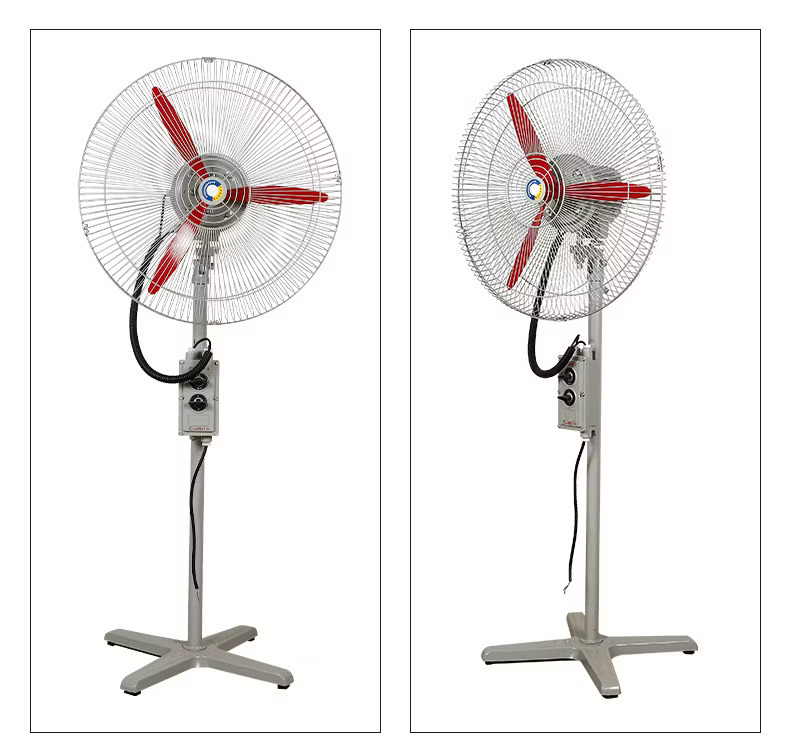

Explosion Proof Floor Fan
Hazardous Area Classification: Zone 1 & Zone 2
Explosive Gas Atmospheres: Category II A, II B
Temperature Classification: T1–T4
Explosion-proof Mark: Exd II BT4
Standards Implemented: GB3836.1-2000, GB3836.2-2000, IEC60079
Rotation Speed: 1450 r/min
Inlet Specification: G3/4″
Cable Specification: $\Phi 9\text{mm} – \Phi 14\text{mm}$
Rated Voltage: 110V / 220V / 380V AC
| Model | Rated Voltage (V) | Input Power (kW) | Wind Flow (m³/min) | Impeller Diameter (mm) |
|---|---|---|---|---|
| BFC-500L | 110 / 220 / 380 VAC | 0.37 kW | 6,600 m³/min | 500 mm |
| BFC-600L | 0.55 kW | 9,600 m³/min | 600 mm | |
| BFC-750L | 0.75 kW | 18,000 m³/min | 700 mm |

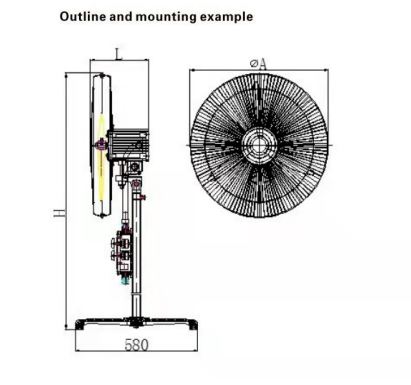

Mounting Dimension
| Type | A (mm) |
L (mm) |
H (mm) |
NOTE |
|---|---|---|---|---|
| BFC-500L | 554 | 310 | 1500 | / |
| BFC-600L | 654 | 310 | 1558 | / |
| BFC-750L | 804 | 310 | 1658 | / |
