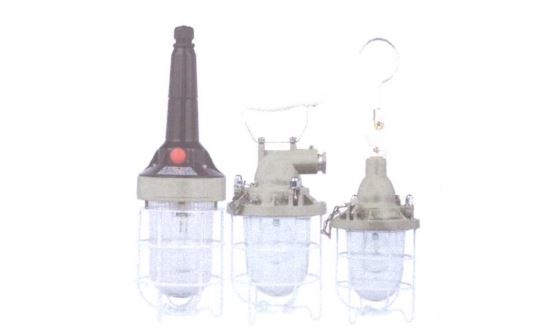

Explosion Proof Hand Light

Application

  • Designed for hazardous areas containing ignitable vapors, dust, moisture, and corrosive elements.

  • Typical applications include:

    • Oil and gas industries

    • Chemical, petrochemical

    • Pharmaceutical industries

    • Pulp and Paper

    • Waste and sewage treatment

    • Power Generation

Standard Materials

  • Housing: Die-casting aluminum

  • Exterior: Stainless steel

  • Globe: Tempered glass (Anti-glare)

  • Gasket: Silicon rubber

  • Wire Guard: Carbon steel

Features

  • Shell: Die-cast aluminum alloy (copper content $< 0.4\%$) with high-speed shot blasting and high-voltage electrostatic spray paint for corrosion resistance.

  • Fasteners: Made of stainless steel.

  • Glass: Tempered glass for transparent components, featuring high-energy impact resistance and anti-glare design.

  • Protection: Equipped with a lens guard to prevent glass breakage.

  • Maintenance: Features an easy-opening hole and a patented automatic suspended security structure for fast, safe, and convenient lamp replacement.

Certifications

  • ATEX

  • CNEX

  • CE

  • RoHS

  • ISO9001

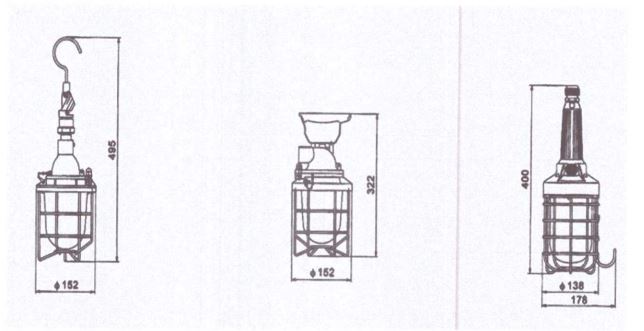

Dimension(in mm)

Responsive Technical Data Tables
Electrical Data
Ex Marking Ex d IIB T4 / Ex d IIC T6
Classification Group II, Category 2 GD; Class I, Division 1 and 2, Group A, B, C, D
IP Degree IP54 / IP65
Corrosion Resistant WF1
Input Voltage 36VDC / 220VAC 50Hz
Conduit Entries G 3/4"
Lamp Holder E27
Ordering Information
Model No. BCDS-I BCDS-II BCDS-III
Incandescent 40, 60, 100 Watt 40, 60, 100 Watt 40, 60, 100 Watt
Weight 1.8 kg 1.9 kg 2.5 kg
