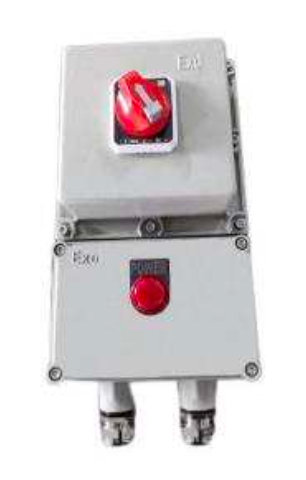

Explosion Proof Isolator Breaker

Features

  • Applications: Used in hazardous environments, such as chemical plants, petroleum plants, mines, dust environments, hazardous gas environments, etc.

  • Construction: Usually made of high strength stainless steel and aluminium alloy.

  • Functions: Spark-proof, arc-proof, overload-proof, and leakage-proof.

  • Customization: These boxes can be customized according to different application requirements, including size, shape, mounting method, and the number of circuit breakers to be accommodated.

  • Maintenance: Designed to be easy to maintain and access so that maintenance work can be carried out quickly when required.

Technical Specifications

  • Material: Aluminum Alloy, Stainless Steel, GRP

  • Ex Mark: Ex db eb IIC T6 Gb / Ex tb IIIC T80°C Db

  • Protection: IP65 / WF1 / WF2

  • Rated Current: $\le 400\text{A}$

  • Rated Voltage: 220 / 380V

  • Cable Entry: G1/2″, G3/4″, G1″

  • Certifications: CNEx, ATEX

  • Mounting: Wall

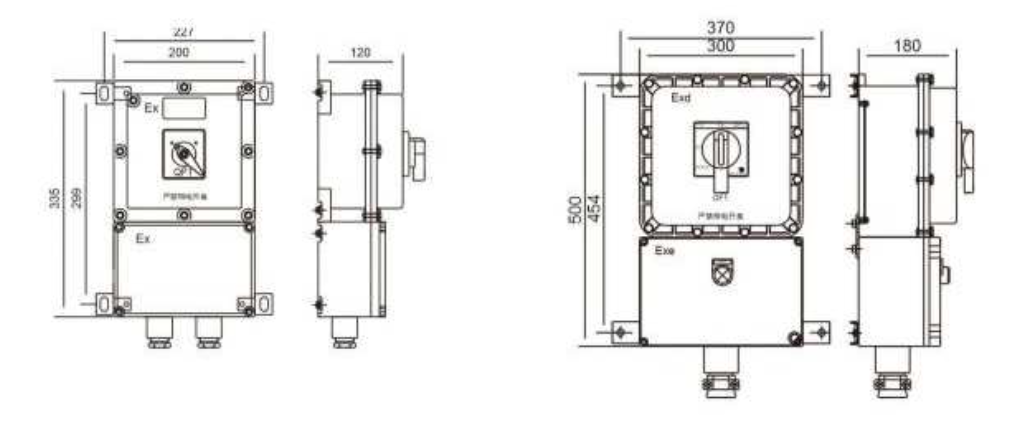

Dimension(in mm)
