Explosion Proof Junction Box
Voltage: 220/380VAC
Ex Mark: Ex db IIC T6 Gb / Ex tb IIIC T85°C Db
Material: Cast Aluminium / Stainless Steel
Cable Entry: G1/2″, G3/4″, G1″, G1.1/4″, G1.1/2″, G2

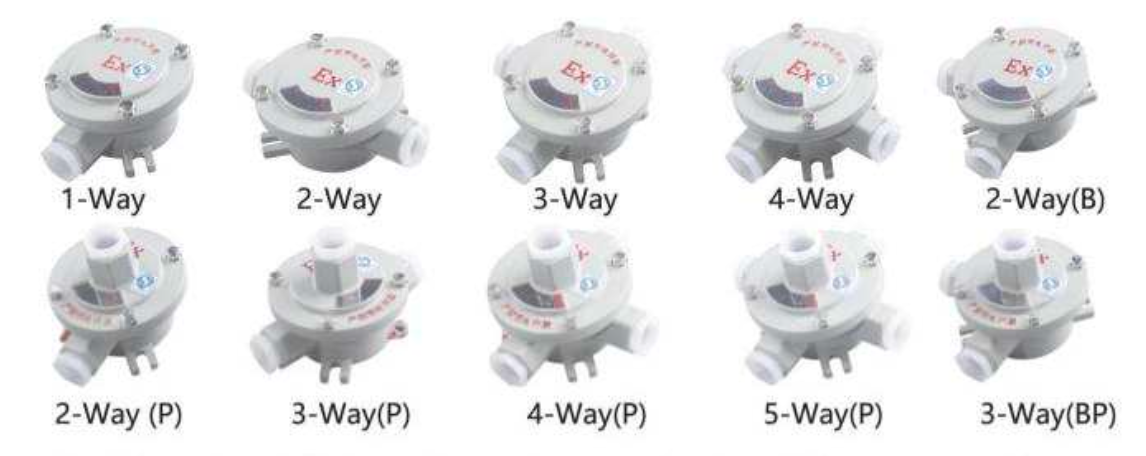

Entry No.: See illustration
Features
Aluminium alloy shell die-casting, surface spraying, beautiful appearance.
Diameter can be specially made upon request.
Suitable for steel pipe or cable wiring.

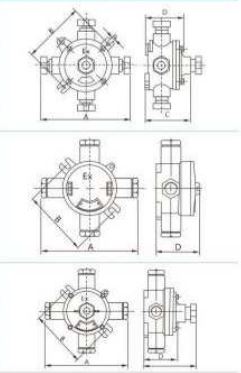

GKAH Explosion Proof Junction Box Specifications
| Cable Outer Diameter (mm) | Ex Mark / Protection | Thread Size (G") | A (mm) | B (mm) | C (mm) | D (mm) |
|---|---|---|---|---|---|---|
| Φ7 - Φ10 | Exd IIBT6 Gb | 1/2 | 170 | 108 | 105 | 66 |
| Φ10 - Φ14 | Exd IIBT6 Gb | 3/4 | 180 | 108 | 108 | 66 |
| Φ12 - Φ18 | Exd IIBT6 Gb | 1 | 195 | 108 | - | 66 |
| Φ15 - Φ23 | Exd IIBT6 Gb | 1 1/4 | 200 | 122 | - | 87 |
| Φ18 - Φ30 | Exd IICT6 Gb | 1 1/2 | 215 | 122 | - | 87 |
| Φ25 - Φ38 | Exe T6 Gb | 2 | 260 | 160 | - | 110 |
| Φ7 - Φ10 | Exd II BT6 Gb Exd II CT6 Gb DIP A20 TA, T6 |
1/2 | 175 | 108 | - | 76 |
| Φ10 - Φ14 | 3/4 | 175 | 108 | - | 76 | |
| Φ12 - Φ18 | 1 | 175 | 108 | - | 76 | |
| Φ15 - Φ23 | 1 1/4 | 200 | 122 | - | 97 | |
| Φ18 - Φ30 | 1 1/2 | 215 | 122 | - | 97 | |
| Φ25 - Φ38 | 2 | 260 | 160 | - | 97 | |
| Φ7 - Φ10 | Exd II BT6 Gb Exd II CT6 Gb DIP A20 TA, T6 |
1/2 | 175 | 108 | 100 | 65 |
| Φ10 - Φ14 | 3/4 | 175 | 108 | 100 | 65 | |
| Φ12 - Φ18 | 1 | 175 | 108 | 100 | 65 |
Installation
Explosion Proof Junction Box
Features
Applications: Used in hazardous environments, such as chemical plants, petroleum plants, mines, and so on.
Design & Customization: Features a flexible and versatile design, providing multiple outlets to accommodate a wide range of electrical connections. Size, shape, and installation can be customized according to specific requirements.
Installation & Maintenance: Designed for easy installation and maintenance with convenient opening and connection interfaces.
Operating Conditions: Operates properly in high or low-temperature environments to ensure the stability and reliability of electrical connections.
Technical Specifications
Material: Aluminum Alloy, GRP, Stainless Steel
Ex Mark: Ex db eb IIC T6 Gb, Ex tb IIIC T80°C Db
Protection: IP65 / WF1 / WF2
Rated Voltage: AC 110 / 220 / 380 / 460V
Rated Current: $\le 100\text{A}$
Cable Entry: Customized
Certifications: CNEx, ATEX
Mounting: Wall

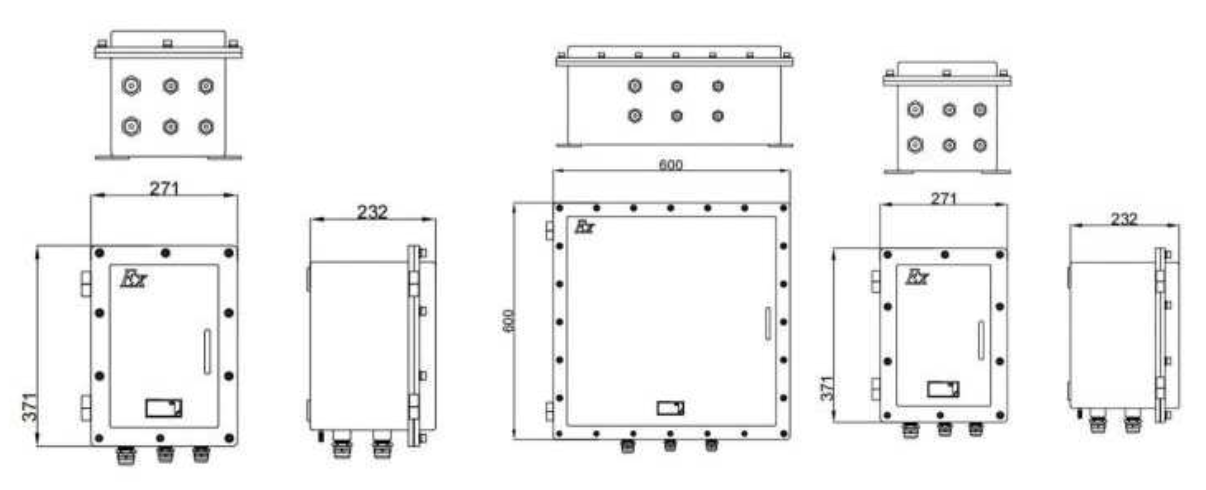

Dimension(in mm)
