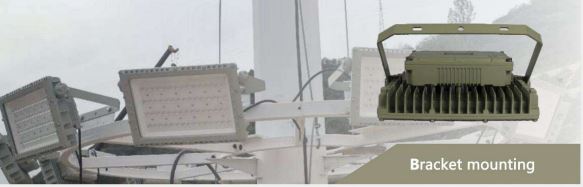

Explosion Proof LED Flood Light 20 -300W

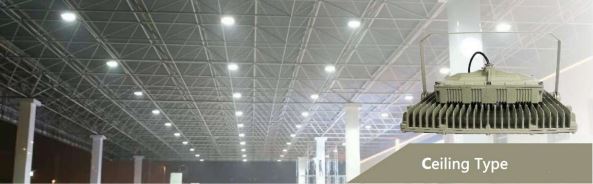

alarz9
alarz10

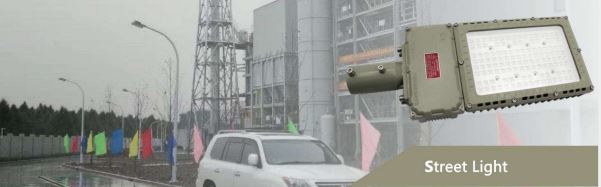

alarz11

Application

  • Oil and gas industries

  • Chemical, petrochemical

  • Pharmaceutical industries

  • Pulp and Paper

  • Waste and sewage treatment

  • Power Generation

Standard Materials

  • Housing: Aluminum Alloy

  • Fasteners: Stainless steel

  • Diffuser: Tempered glass

  • Gasket: Silicon rubber

Certifications

  • ATEX

  • CNEX

  • CE

  • RoHS

  • ISO9001

Features

  • Suitable for Zone 1&2 and Zone 21&22

  • Instant-on crisp white light output

  • High-efficiency drivers and LEDs for low-cost operation in harsh industrial applications

  • Isolated LED compartment reduces driver housing temperature

  • Beam angle choices: 45°, 90°, and 120°

Specifications

  • Ex Marking: Ex II 2G Ex db eb IIC T6 Gb, II 2D Ex tb IIIC T80°C Db IP66

  • Voltage: 100–277 VAC, 50/60Hz

  • Light Source: CREE LEDs

  • LED Beam Angle: 120°

  • CCT: 6000K

  • CRI: 80 (±2)

  • Luminaire Efficiency: 130 Lm/W

  • Driver: MEANWELL

GKGYD7201

GKGYD7202

GKGYD7203

GKGYD7204

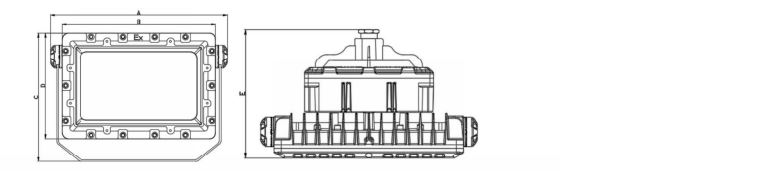

Dimension(in mm)

GKGYD 7000 Series Dimensions (Page 4)
Model A B C D E F G H
GKGYD7201 304 264 219 180 126 216 227 219
GKGYD7202 384 344 273 240 126 255 277 273
GKGYD7203 472 418 315 275 130 295 320 315
GKGYD7204 544 492 371 330 130 341 374 371
GKGYD 7000 Series Page 2 Technical Specifications
Category Parameter Specification / Details
Models Series Models GKGYD7201, GKGYD7202, GKGYD7203, GKGYD7204
Explosion Protection European (ATEX) Gas & Dust CE 1282 II 2G Ex de mb IIC T6
CE 1282 II 2D Ex tD A21 T80°C
For Use In Zone 1, 2 & Zone 21, 22
Ambient Temperature -40°C to +40°C (Best Working Temperature)
-40°C to +85°C (Max. Working Temperature)
Electrical Data Rated Voltage 100–277VAC, 50-60Hz or 24VDC
Power Factor >0.95
THD <20%
Luminous Characteristics Power Consumption [W] 20~80W | 100~120W | 150~200W | 240~300W
LED Brand CREE (USA)
Driver Brand MEANWELL XLG (TAIWAN)
Colour Rendering (CRI) 80 (±2)
Colour Temperature (CCT) 2700K / 3000K / 3500K / 4000K / 5500K / 6000K / 6500K
Luminaire Efficiency 135–145 Lm/W
Beam Angle 120° (60°, 90° is optional)
Mechanical Data Degree of Protection IP66
Cable Entry G 3/4" for 10mm–14mm cable size
Weight [kg] 10 kg | 6 kg | 13 kg | 16 kg
Terminal ≤ 2.5 mm²

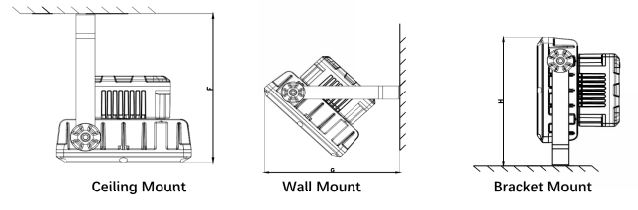

Mounting Styles Ceiling, Wall Bracket, Pendant
Corrosion Resistant WF2 (Powder Coating)

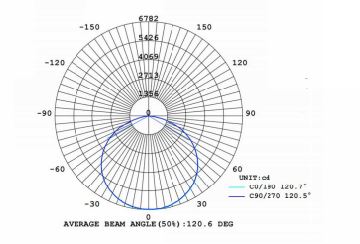

Luminous Intensity Distribution

  • Average Beam Angle (50%): 120.6 DEG

  • C90/270: 120.5°

  • C0/180: 120.7°

  • Beam Angle Range: 105–120 Deg

  • Efficiency: Over 135 lm/W

  • CCT: 5700K

  • CRI: 80

Installation
