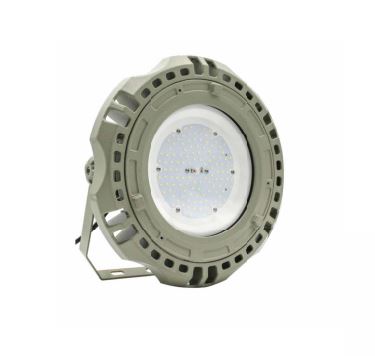

Explosion Proof LED High BayLight Light 20 -240W
Application
Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation
Standard Materials
Housing: Aluminum Alloy
Fasteners: Stainless steel
Diffuser: Tempered glass
Gasket: Silicon rubber
Certifications
ATEX
CNEX
CE
RoHS
ISO9001
Features
Suitable for Zone 1&2 and Zone 21&22
Voltage: 100–277 VAC, 50/60Hz
Components: CREE LEDs with MEANWELL driver
Efficiency: 130 Lm/W
Color Specs: 6000K CCT, CRI 80 (±2)
Beam Angles: Standard 120° (optional 45° and 90°)
Specifications
Ex Marking: Ex II 2G Ex db eb IIC T6 Gb, II 2D Ex tb IIIC T80°C Db IP66
Voltage: 100–277 VAC, 50/60Hz
Light Source: CREE LEDs
LED Beam Angle: 120°
CCT: 6000K
CRI: 80 (±2)
Luminaire Efficiency: 130 Lm/W
Driver: MEANWELL
GKGYD6201
GKGYD6202
GKGYD6203
GKGYD6204
Dimension(in mm)
| Specification | Value |
|---|---|
| European (ATEX) Gas and Dust |
CE1282 II 2G Ex db eb IIC T6 Gb CE1282 II 2D Ex tb IIIC T80°C Db IP66 |
| Application | For use in Zone 1, 2 & Zone 21, 22 |
Electrical Data
| Parameter | Value |
|---|---|
| Rated Voltage | 100–277 VAC, 50–60Hz |
| Power Factor | > 0.95 |
| THD | < 20% |
Luminous Characteristics
| Parameter | Value Range / Details |
|---|---|
| Power Consumption [W] | 20–70 | 80–120 | 150–200 | 220–300 |
| Colour Rendering [CRI] | 80 (±2) |
| Colour Temperature [K] | 6000K |
| Luminaire Efficiency [Lm/W] | 140 |
| Beam Angle | 120° (45°, 90° is optional) |
Mechanical Data
| Parameter | Value / Options |
|---|---|
| Degree of Protection | IP66 |
| Cable Entry | G 3/4″ |
| Dimensions [mm] | 270×270×170 | 320×320×170 | 360×360×170 | 400×400×175 |
| Weight [kg] | 5.25 | 6.5 | 8.6 | 10.7 |
| Terminal | ≤ 2.5 mm² |
| Mounting Styles | Ceiling; Wall Bracket; Pendant |

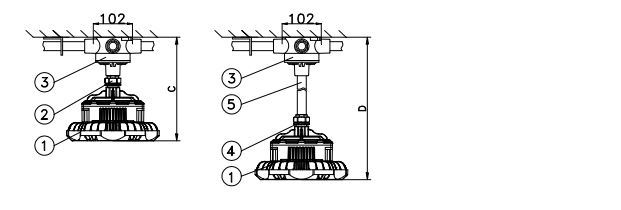

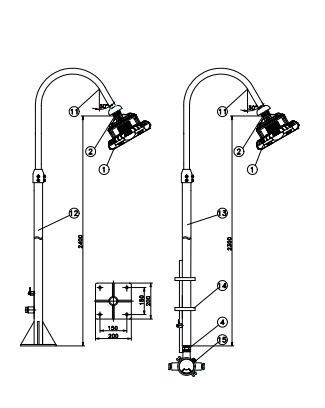

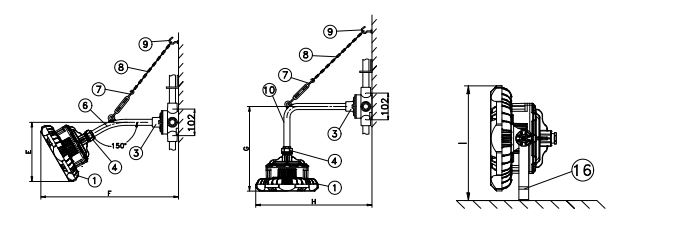

Installation
