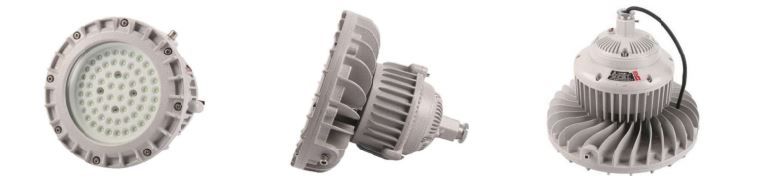

Explosion Proof LED Light
| Technical Parameters | |||
|---|---|---|---|
| European (ATEX) Gas and Dust |
CE 1282 II 2G Ex d IIC T6 Gb CE 1282 II 2D Ex tb Db |
||
| Watt | 20–50W | 60–80W | 120–200W |
| Input Voltage | AC 220V (Optional DC 24V / 36V) | ||
| Luminous Flux | 120 LM/W | ||
| Working Temperature | -40°C ~ +50°C | ||
| IP Grade | IP66 | ||
| Weight | 4 kg | 5 kg | 8.3 kg |
| Mounting Styles | Ceiling, Pendant, Wall Bracket, Guardrail Type, Flange Type | ||
| Dimensions & Installation [mm] | 205 × 250 | 258 × 250 | 330 × 250 |

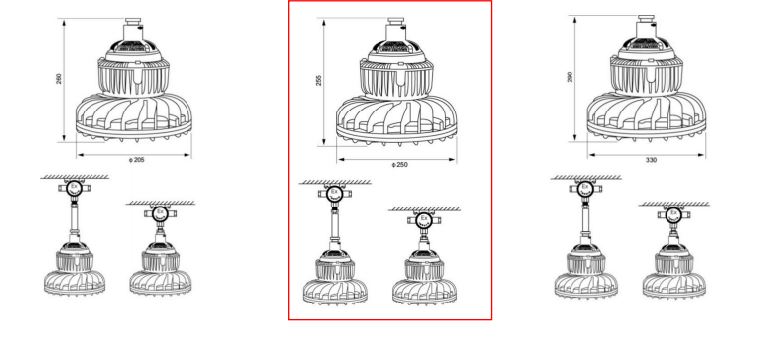

Dimension & Installation(mm)
