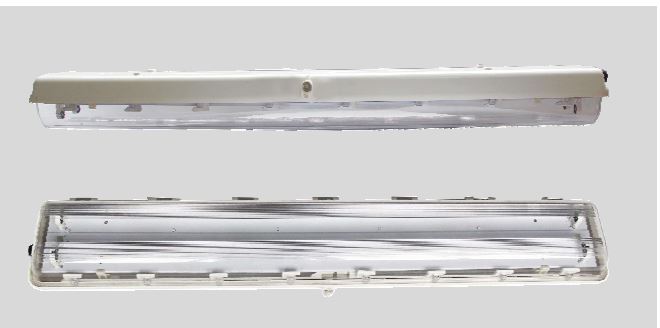

Explosion Proof Linear Light Fixture 2X18W LED Tube

Application

A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present
Areas requiring frequent on-and-off of lights or power cycling- no warm up time required
Areas with high energy costs
Typical applications include:
- Oil and gas industries
- Chemical, petrochemical
- Pharmaceutical industries
- Pulp and Paper
- Waste and sewage treatment
- Power Generation

1- GRP enclosure, corrosion-proof, Polycarbonate lampshade, strip-shaped with anti-glare

2- Special locking mechanism, with reliable locking force

3- Built-in explosion proof interlock device, automatically power-off after cover open

4- The emergency device can be equipped at the request of users.

II 2G Ex db eb IIC T6 Gb

II 2D Ex tb IIIC T80°C Db IP66

Application: Zones 1,2,21,22

Voltage: 220-240VAC, 50-60 Hz

Light source: LED Tube (include 2pcs Philips LED tube)

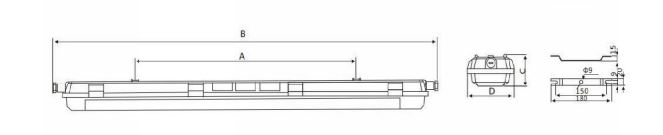

Responsive Technical Data Tables

	A	B	C	D
GKBYS-600	642	798	120	208
GKBYS-1200	800	1380	120	208

Electrical Data

Ex Marking	Ex d e IIC T6 Gb/ DIP A21 TA, T6
Classification	Group II, Catogory 2 GD; Class I, Division 1 and 2,Group A,B,C,D;
IP Degree	IP66
Corrosion Resistant	WF1
Rated Voltage	220-240VAC/50~60HZ
Conduit Entries	G 3/4"
Battery Back-up	Optional, Emergency time>90min;Charging time:24h;Starting time:0.3s

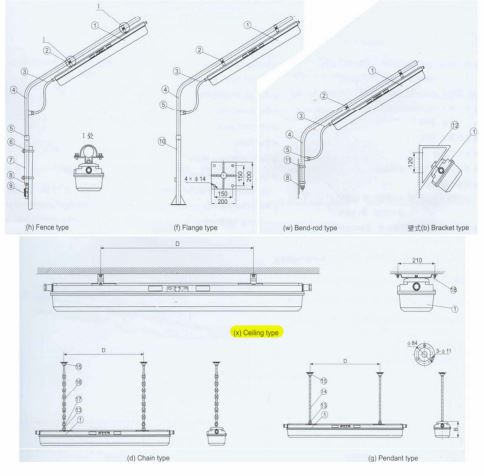

Mounting Styles	Pendant; Ceiling; Chain; Embedded; Wall; Stanchion

Ordering Information
