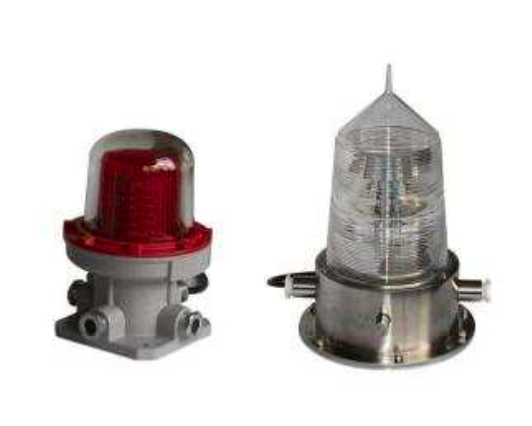

Explosion-proof Obstruction Lights (GKGZD Series)
Features
Cast aluminium alloy shell
Light-controlled automatic switch control (automatically opens/closes according to ambient brightness with strong reliability)
Internal use of optimized control circuit with advanced and reliable electrical integrated components
LED light source providing small size, low power consumption, long life, strong light emission, and adjustable flashing frequency
Technical Specifications
Explosion-proof Obstruction Lights
GKGZD Series Specifications
| Power Options | 5–40W |
|---|---|
| Ex Marking | Ex db eb IIC T6 / Ex tb IIIC T80°C Db |
| Operating Voltage | 220VAC, 24VDC |
| Light Intensity |
Low: > 200 cd Middle: > 2,000 cd High: > 20,000 cd |
| Flashing Frequency | 20–60 Times/min |
| Available Colors | Red, Transparent |
| Certifications | ATEX |
| Mounting Type | Wall |
