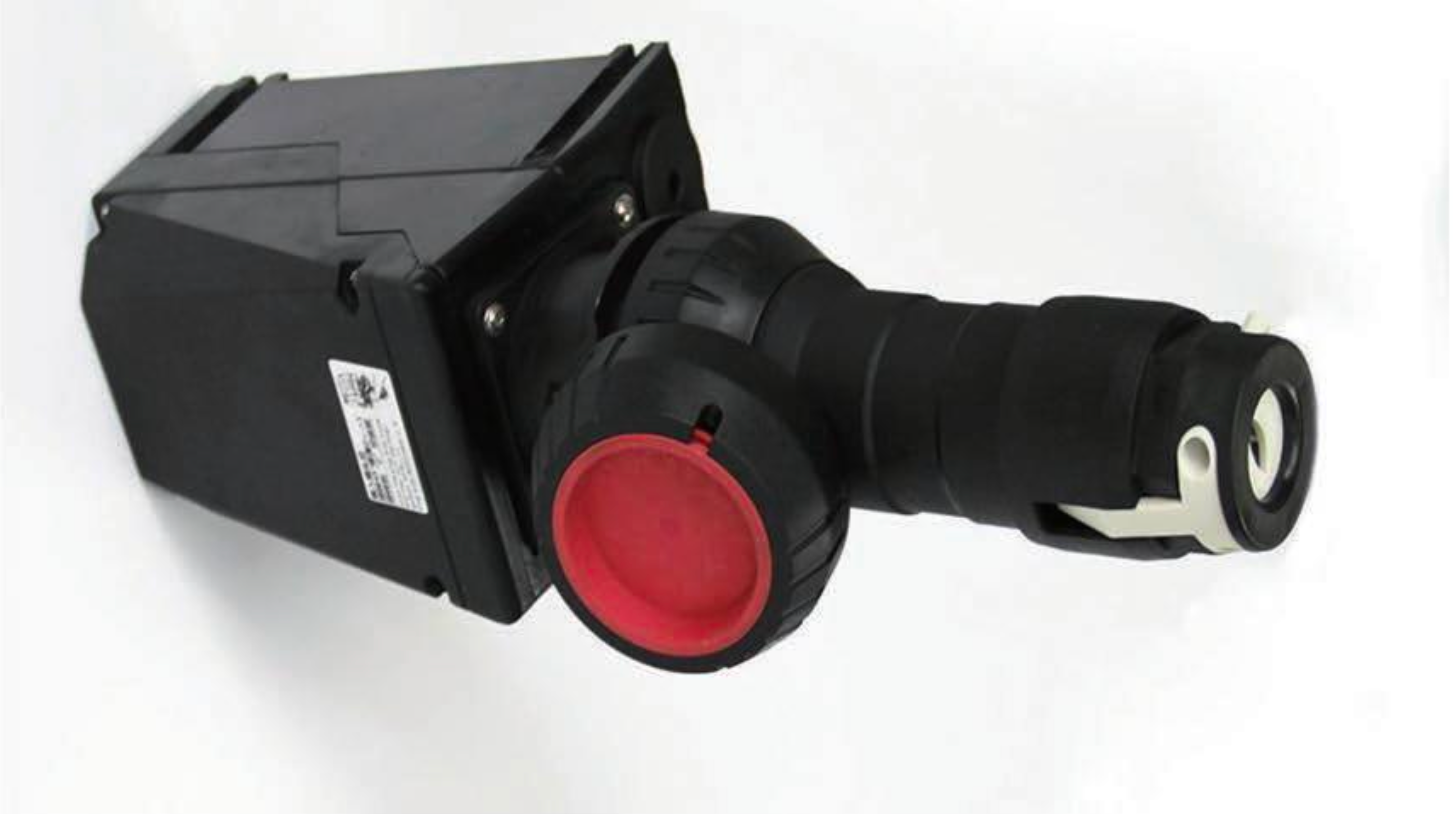

Explosion Proof Plug and Socket (MODEL - GKAC8030)

  • The shell is corrosion-resistant, impact-resistant, thermally stable, simple, and beautiful.

  • With reliable interlocking function: the plug can only be pulled out after the switch in the socket cavity breaks, and the switch can only be closed when the plug is inserted into the cavity.

  • Reliable contact performance and long service life of the plug; the socket inside the socket sleeve has an elastic louvre type spring sleeve (made of beryllium bronze, heat-treated), so that the plug has both self-cleaning characteristics and ensures a small contact resistance and low temperature rise.

  • The socket is equipped with a padlock, which can be locked when not in use and prevents the socket from being opened.

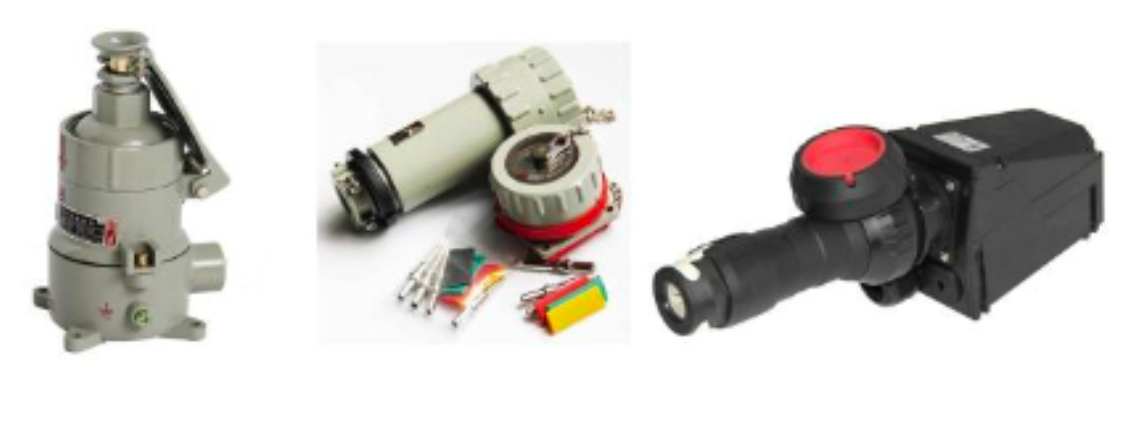

  • Configurations available: Wall Mount Socket, Surface Mount Socket, Plug.

Application

  • A wide range of hazardous areas where ignitable vapors, dust, moisture, and corrosive elements are present.

  • Areas requiring frequent on-and-off of lights or power cycling (no warm-up time required).

  • Areas with high energy costs.

  • Typical applications include:

    • Oil and gas industries

    • Chemical, petrochemical

    • Pharmaceutical industries

    • Pulp and Paper

    • Waste and sewage treatment

Specifications & Standards

  • Implementing Standards: GB3836.1-2000, GB3836.2-2000, IEC60079

  • Explosion-proof Mark: Exed II CT6

  • Protection Grade: IP65

  • Corrosion-proof Grade: WF2

Standard Materials

  • Housing: Glass Reinforced Polyester (GRP)

  • Exterior: Stainless steel

GKAC8030 Technical Parameters Table
Type Rated voltage Rated current Poles Illustration Inlet's thread Cable's outside diameter
16A 220
380		 16 1P+N+PE
3P+N+PE		 ⊕ 3/4 3–14
32A 220
380		 32 1P+N+PE
3P+N+PE		 ⊕ 1 11–18
63A 220
380		 63 1P+N+PE
3P+N+PE		 ⊕ 1 1/2 17–28
16A 220
380		 16 1P+N+PE
3P+N+PE		 ⊕ 3/4–1 9–18

Note: Linker used for connecting distance-cable, linker current is only limited to 16A.

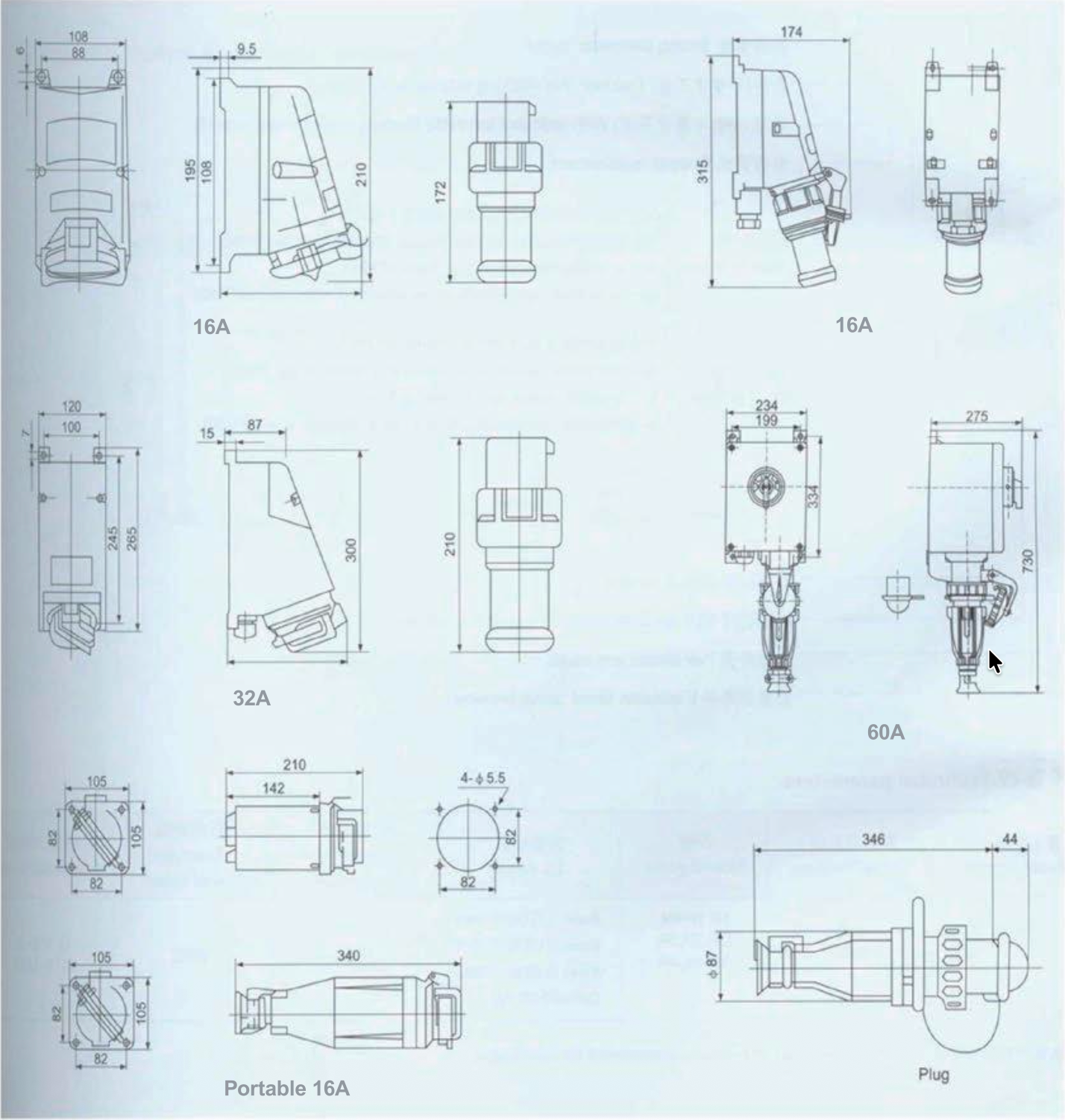

Installation
