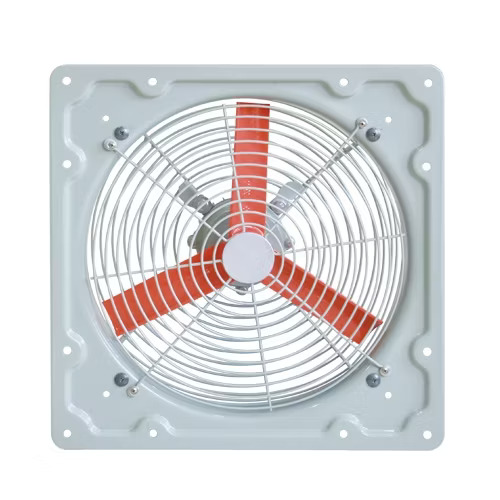

Explosion Proof Floor Fan
Applications
Hazardous Zones: Suitable for Zone 1 and Zone 2 hazardous areas.
Gas Environments: Designed for Category II A and II B explosive gas atmospheres with temperature classifications ranging from T1 to T4.
Technical Specifications
Standards: Complies with GB3836.1-2000, GB3836.2-2000, and IEC60079.
Explosion-Proof Mark: Exd II BT4 / Ex db eb IIC T6 Gb.
Rotation Speed: 1450 r/min.
Inlet Specification: G3/4″.
Cable Specification: 9 mm – 14 mm.
| Type / 产品型号 | Rated Voltage (V) / 额定电压 | Input Power (kW) / 输入功率 | Wind Flow (m³/min) / 风量 | Impeller Diameter (mm) / 叶轮直径 |
|---|---|---|---|---|
| BFC-300 | 380/220 | 0.25 | 2280 | 300 |
| BFC-400 | 0.37 | 2880 | 400 | |
| BFC-500 | 0.55 | 5700 | 500 | |
| BFC-600 | 0.75 | 8700 | 600 |
Features
Construction: Consists of an explosion-proof motor, blades, and single-body assembly frame.
Materials: Air duct frame made of welded quality steel plate; fan blades cast in aluminum alloy with high-voltage static plastic-sprayed coating.
Performance: Integrated damping device for low-operating noise and secure wall mounting.
Wiring: Supports conduit and cable wiring.

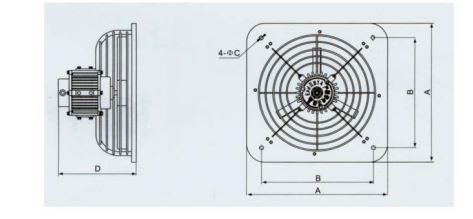

| Type / 型号 | A (mm) | B (mm) | C (mm) | D (mm) |
|---|---|---|---|---|
| BFC-300 | 385 | 350 | 12 | 280 |
| BFC-400 | 480 | 440 | 12 | 280 |
| BFC-500 | 585 | 460 | 15 | 380 |
| BFC-600 | 710 | 525 | 15 | 310 |
