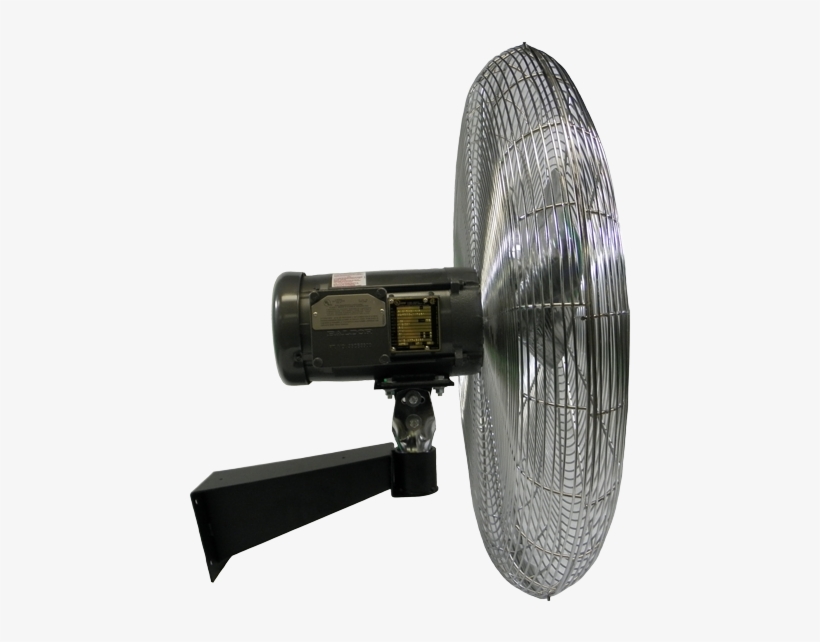

Explosion Proof Wall Fan
Applications
Hazardous Zones: Suitable for Zone 1 and Zone 2 hazardous areas.
Gas Environments: Designed for Category II A and II B explosive gas atmospheres with temperature classifications ranging from T1 to T4.
Technical Specifications
Standards: Complies with GB3836.1-2000, GB3836.2-2000, and IEC60079.
Explosion-Proof Mark: Exd II BT4 / Ex db eb IIC T6 Gb.
Rotation Speed: 1450 r/min.
Inlet Specification: G3/4″.
Cable Specification: 9 mm – 14 mm.
| Type | Rated Voltage (V) | Input Power (kW) | Wind Flow (m³/min) | Impeller Diameter (mm) |
|---|---|---|---|---|
| BFC-BTS500 | 110/220/380VAC | 0.37kW | 6600 m³/min | 500mm |
| BFC-BTS600 | 0.55kW | 9600 m³/min | 600mm | |
| BFC-BTS750 | 0.75kW | 18000 m³/min | 700mm |
Features
Construction: Consists of an explosion-proof motor, blades, and single-body assembly frame.
Materials: Air duct frame made of welded quality steel plate; fan blades cast in aluminum alloy with high-voltage static plastic-sprayed coating.
Performance: Integrated damping device for low-operating noise and secure wall mounting.
Wiring: Supports conduit and cable wiring.

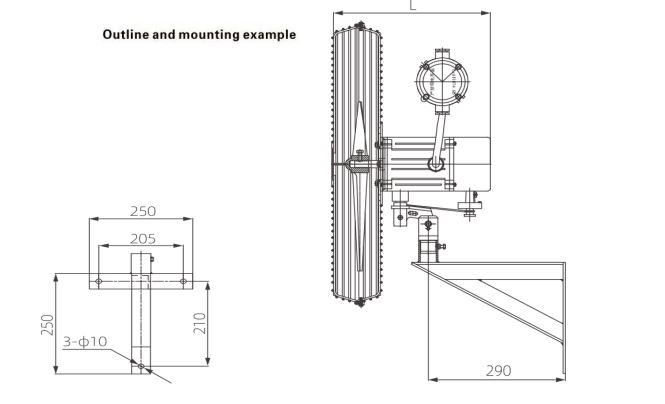

| Type | A (mm) | L (mm) |
|---|---|---|
| BFC-BTS500 | 554 | 310 |
| BFC-BTS600 | 654 | 310 |
| BFC-BTS750 | 804 | 310 |
