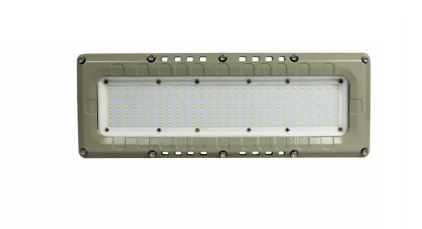

LED Explosion Proof Light 50W

Application

  • Oil and gas industries

  • Chemical, petrochemical

  • Pharmaceutical industries

  • Pulp and Paper

  • Waste and sewage treatment

  • Power Generation

Standard Materials

  • Housing: Aluminum Alloy

  • Fasteners: Stainless steel

  • Diffuser: Tempered glass

  • Gasket: Silicon rubber

Features

  • Hazardous Zones: Zone 1 & 2, Zone 21 & 22

  • Light Output: Instant on crisp white light

  • Efficiency: High-efficiency drivers and LEDs provide low-cost operation in harsh and heavy industrial applications

  • Thermal Design: Isolated LED compartment reduces temperature within driver housing

  • Beam Angle Options: $45^\circ$, $90^\circ$, $120^\circ$

Certifications

  • ATEX

  • CNEX

  • CE

  • RoHS

  • ISO9001

GKGYD 7000 Series Dimensions (Page 4)

Explosion protection

European (ATEX)
Gas and Dust		 CE1282 II 2G Ex db eb IIC T6 Gb
CE1282 II 2D Ex tb IIIC T80°C Db IP66
For use in Zone 1, 2 & Zone 21, 22

Electrical data

Rated voltage 100-277VAC, 50-60Hz (Emergency functions can be customized)
Power factor >0.95
THD <20%

Luminous characteristics

Power consumption [W] 50
Colour rendering [CRI] 80 (±2)
Colour temperature [K] 3000-6500
Luminaire efficiency [Lm/W] 130
Beam angle 120°

Mechanical data

Degree of protection IP66
Cable entry G 3/4"
Weight [kg] 5.5
Terminal ≤ 2.5 mm²
Mounting Styles Ceiling; Wall Bracket; Pendant

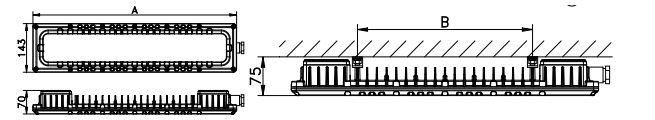

Dimension(in mm)

GKGYD 7000 Series Page 2 Technical Specifications

Dimension [mm]

Type Power A B
GKGYD930 50W 400 143

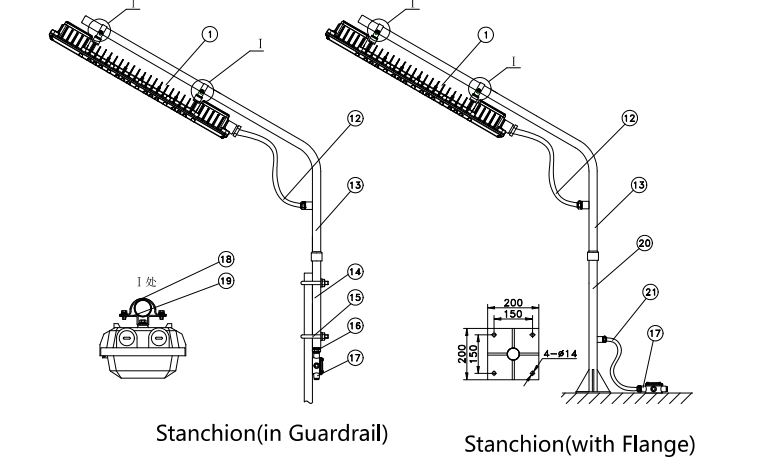

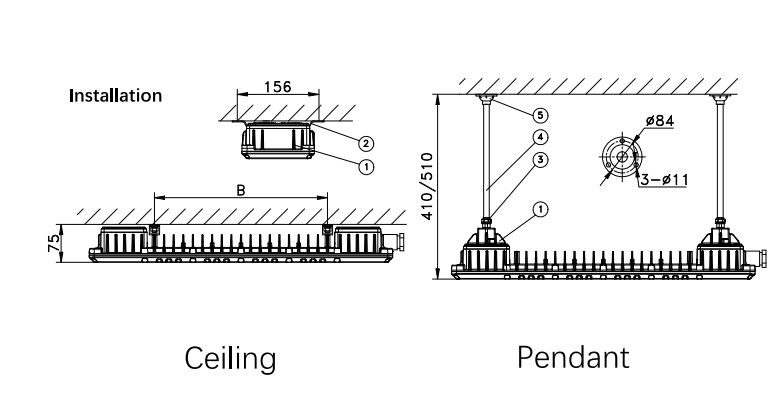

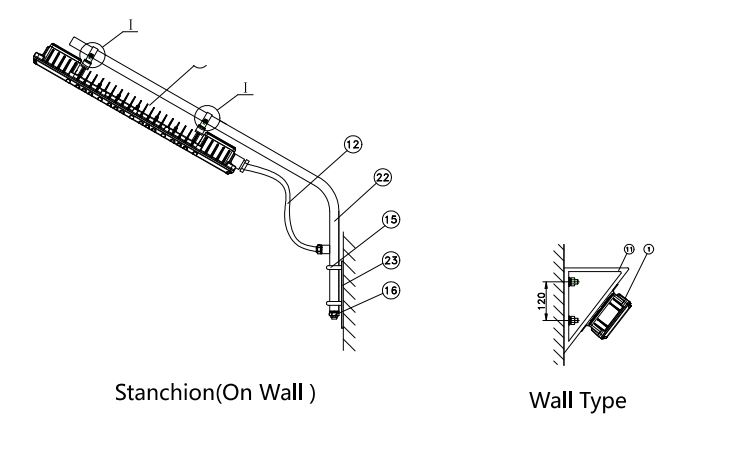

Installation
