Switchgear is the collective term for the devices that switch, protect, control, and isolate electrical circuits in power distribution systems. From miniature circuit breakers in residential distribution boards to large air circuit breakers and medium voltage vacuum breakers in industrial substations, switch is the backbone of safe and reliable electrical power management. Selecting the right switchgear for each application requires careful technical evaluation and the guidance of a knowledgeable Electrical Switchgear Supplier in UAE. Making the wrong switch selection — in terms of voltage rating, current rating, breaking capacity, or protection functions — can have serious safety and reliability consequences.

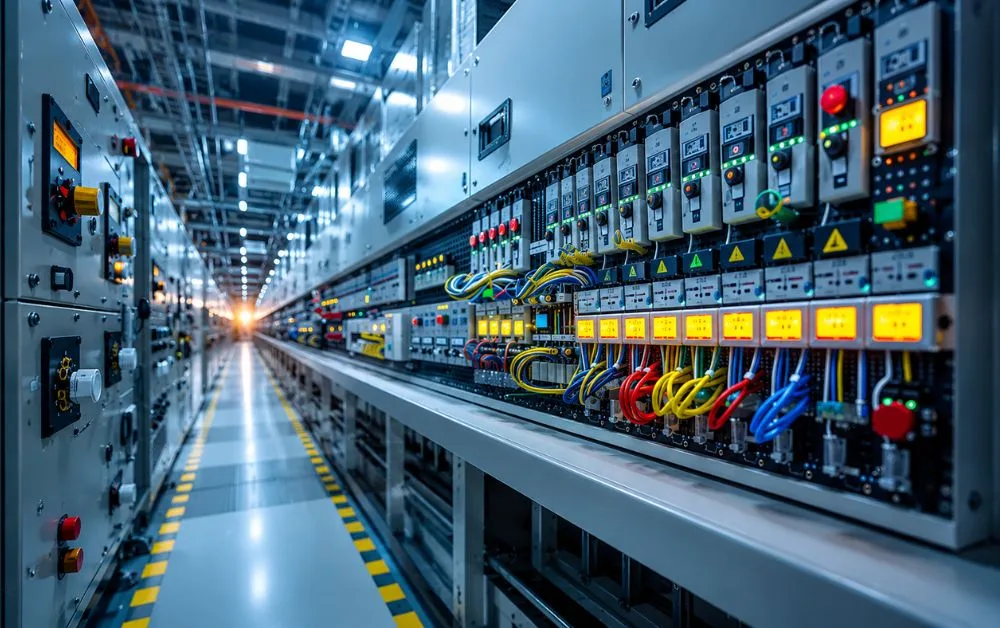

Understanding the Different Categories of Switchgear
Switchgear is broadly categorized by voltage level. Low voltage switch operates at voltages up to 1000V AC or 1500V DC and covers the widest range of applications from residential distribution boards to industrial motor control centers and commercial building switchboards. Medium voltage switch handles voltages typically from 1kV to 52kV and is used in industrial substations, utility distribution networks, and large commercial and infrastructure facilities. The distinction matters because the technical requirements, installation standards, testing protocols, and regulatory approvals required are fundamentally different between these categories. A qualified Electrical Switchgear Supplier in UAE will help projects navigate these distinctions and ensure correctly rated equipment is specified and supplied.
Voltage and Continuous Current Rating
The fundamental starting point for any switchgear specification is matching the voltage rating and continuous current rating to the system requirements. Switch must be rated for the system nominal voltage plus appropriate safety margins above the maximum possible overvoltage conditions. The continuous current rating must be sufficient for the maximum continuous load current under the worst-case ambient temperature conditions at the installation location. In the UAE, where ambient temperatures can significantly affect the current-carrying capacity of switchgear, ensuring that thermal derating factors are properly applied is essential. Electrical Switchgear Supplier in UAE with strong technical knowledge will verify these factors during the equipment selection process.
Short Circuit Rating and Breaking Capacity
One of the most critical and most frequently misunderstood aspects of switchgear selection is ensuring that the equipment is rated to safely withstand and interrupt the prospective short circuit current at the point of installation. Short circuit events impose enormous instantaneous forces on switch components — both the magnetic force from the fault current and the thermal energy deposited in the conductors and contacts. Switch that is undersized for the fault level at its installation point may not safely interrupt a fault current, resulting in explosive failure of the switchgear that can cause severe damage and injuries. Always confirm the prospective short circuit current at each installation point with your electrical design team and verify with your Electrical Switchgear Supplier in UAE that the specified switch is rated to exceed this value.
Protection Functions and Coordination
Modern switchgear incorporates protective relay functions that cause the circuit breaker to trip in response to abnormal electrical conditions. These include overcurrent protection to disconnect overloaded circuits, earth fault protection to detect current leakage to earth which may indicate insulation breakdown, differential protection for transformers and motors which compares current entering and leaving the protected equipment, and arc flash protection which can detect and clear arc fault events extremely rapidly to limit energy release. The correct protection functions, settings, and coordination between different levels of switch must be designed by a qualified electrical engineer to ensure that faults are cleared selectively, with the minimum impact on unaffected circuits.
Explore more-How to Maintain Switchgear for Long-Term Performance
Enclosure Specification for UAE Environments
Switchgear enclosures must be specified to match the environmental conditions of the installation location. Indoor switch in air-conditioned switch rooms can use lower IP-rated enclosures. Outdoor switch must withstand the UAE climate including direct sunlight, extreme heat, coastal salt air in many locations, and fine dust. Stainless steel or GRP enclosures may be required for coastal or process industry installations where carbon steel enclosures would corrode rapidly. Thermal management through ventilation, air conditioning, or heat exchangers must also be considered to keep internal switch temperatures within operational limits in the UAE climate.
Brand Reputation, Standards Compliance, and Documentation
When sourcing through a Electrical Switchgear Supplier in UAE, always verify that the switchgear brands offered have a proven track record in the UAE market and carry internationally recognized type test certifications from accredited testing bodies. IEC 61439 for low voltage switch assemblies and IEC 62271 for medium voltage switch are the relevant international standards. Type test reports from KEMA, DEKRA, TUV, or equivalent laboratories should be available on request. This documentation is required by DEWA, ADDC, and other UAE approving authorities for the commissioning of electrical installations.

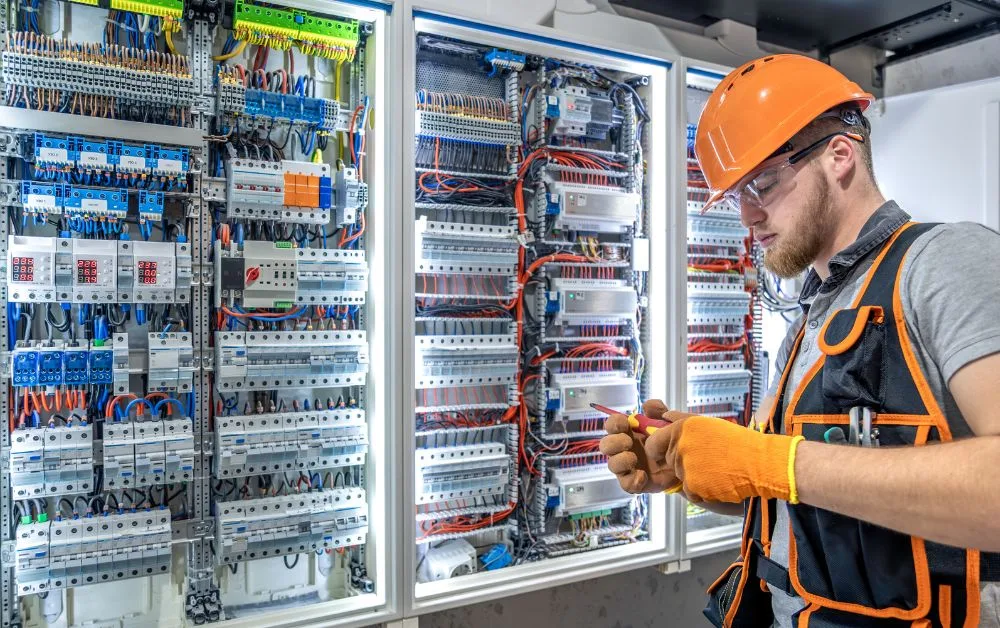

Al Arz Electrical: Your Trusted Switchgear Supplier in UAE
Al Arz Electrical is a trusted Electrical Switchgear Supplier in UAE providing a comprehensive range of low and medium voltage switch for projects across the UAE. Their technical team has the expertise to assist with switchgear specification, rating verification, protection function selection, and documentation preparation for project approvals. Whether you need distribution boards for a residential development or MV switch for an industrial substation, Al Arz Electrical has the product range and technical capability to support your project.
Conclusion
Selecting switch correctly requires a combination of rigorous technical analysis and access to products that meet the performance and certification requirements of UAE electrical regulations. Partnering with a knowledgeable and qualified Electrical Switchgear Supplier in UAE like Al Arz Electrical Ware Trading ensures that every switchgear selection is made with full consideration of voltage rating, fault level, protection requirements, environmental conditions, and regulatory compliance, resulting in electrical installations that are safe, reliable, and ready for inspection and commissioning.
